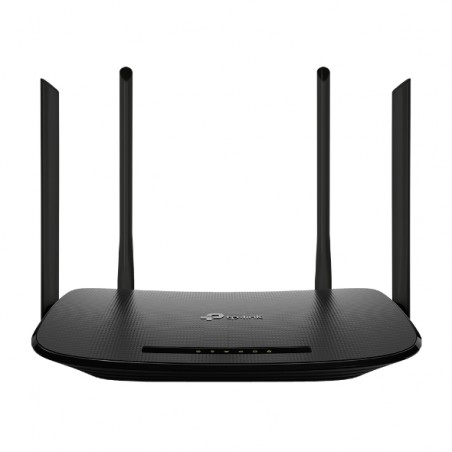

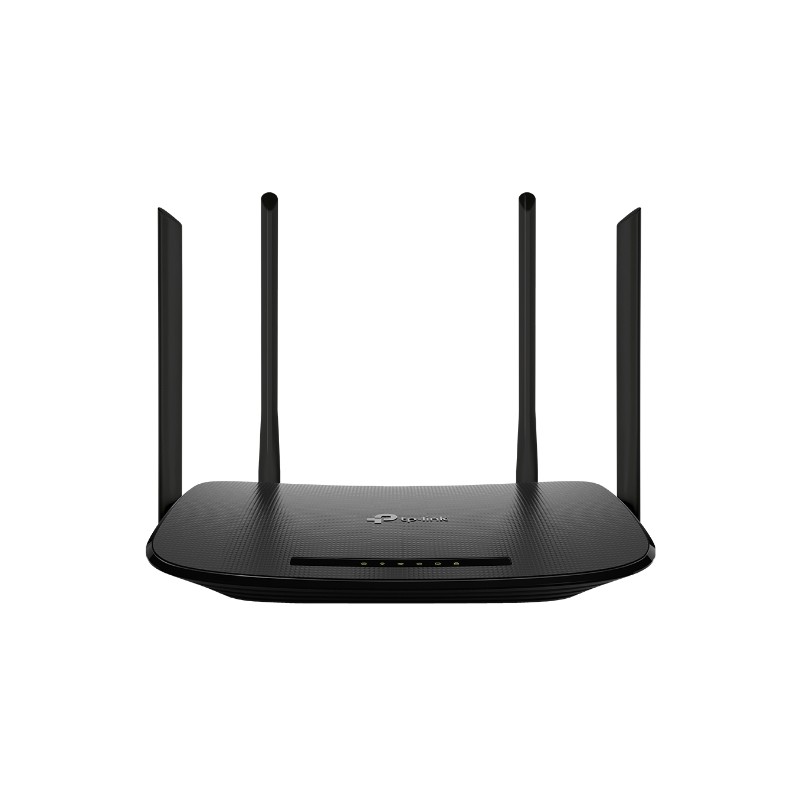

TP-Link AC1200 MU-MIMO Wi-Fi Router - EC223-G5

PGEC223-G5
  • AC1200 Dual Band WiFi: Delivers total WiFi speeds up to 1200 Mbps on the 2.4 GHz and 5 GHz bands.
  • Full Gigabit Ports: Enjoy fast, reliable wired connections for gaming and streaming at the best quality.
  • Extensive Coverage: Beamforming and four antennas combine to deliver focused reception to devices far away.
  • EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.
  • Enhanced Protection: Protect your network with firewalls, parental controls, and the latest WPA3 encryption.
  • Easy Setup: Set up your router in minutes with the intuitive web interface or the powerful Aginet app.
  • Remote Management: Aginet ACS, and TR-069 (TR-098/TR-181), TR-111, and TR-143 protocols are supported.















                        Solo i clienti PG Italy possono acquistare questo prodotto.

                        Invia la richiesta d’affiliazione per poter accedere al PG Store.













ListiniRiservati








AssistenzaSpecializzata








SpedizioneTracciabile e Garantita



















































HARDWARE FEATURES




External Power Supply
12V/1.0A



Interface
1× 10/100/1000 Mbps WAN Port
3× 10/100/1000 Mbps LAN Ports



Antenna
4× External Antennas



Dimensions ( W x D x H )
9.1 × 5.7 × 1.5 in (230.0 × 144.0 × 37.0 mm)









WIRELESS FEATURES




Frequency
2.4 GHz and 5 GHz



Signal Rate
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps*



Transmit Power
CE: <20 dBm(2.4 GHz), <23 dBm (5 GHz)
FCC:<30 dBm (2.4 GHz & 5.15 GHz–5.825 GHz)



Wireless Functions
Enable/Disable Wireless Radio, WMM, Wireless Statistics
Beamforming, Band Steering, Airtime Fairness



Wireless Security
WPA-PSK[TKIP]/WPA2-PSK[AES]/WPA3-Personal/WPA2-Enterprise



Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11 k/v/r



Mesh Technology
EasyMesh compatible and supports 802.11 k/v/r†









SOFTWARE FEATURES




WAN Type
Dynamic IP, Static IP, PPPoE, PPTP, L2TP



DHCP
Server, Client, DHCP Client List, Address Reservation



Port Forwarding
Vritual Server, Port Triggering, DMZ, UPnP



Quality of Service
WMM, Bandwidth Control



VPN Pass-Through
PPTP, L2TP, IPSec



Access Control
Parental Controls, Local Management Control, Host List, White List, Black List



Firewall Security
DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding



Management
Local management: WebGUI, Aginet app
Remote management: TR-069 (TR-098/TR-181), TR-111, TR-143, Aginet ACS



Advanced Features
Parental Controls, Firewall, IPSEC VPN, IPv6, Port Forwarding,
NAT Forwarding, Address Reservation, QoS (Quality of Service),
CWMP, Network Diagnosis, Traffic Statistic, EasyMesh Compatible, Multi-SSID, Guest Network



Protocols
Supports IPv4 and IPv6









OTHERS




Package Contents
AC1200 MU-MIMO Wi-Fi Router EC223-G5
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide



Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing



Certifications
CE, RoHS



Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Java-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
